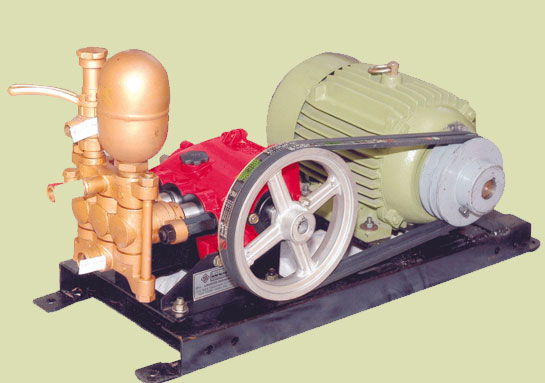

Piston Pump/ Plunger Pumps

Features

• Heavy Duty and Power efficient
• Sturdy Construction
• Develops maximum pressure Upto 300/400 PSI
• Horizontal stainless steel Piston
• All working parts are lubricated by oil path.
• Provides By – pass cum pressure regulating valve and pressure vessel.
• Suction capacity is 10 LPM to 36 LPM.

Application

• Spraying Agro chemicals in the orchards & the fields.
• Automobile service station
• Boiler feed Pump.
• Hydro Testing for vessels valves etc.,
• Jet Spray cleaning System
• Spray drying systems.

Function of Piston Pumps / Plunger Pumps :-

These will work an oil bath with stainless Steel plunger having discharge capacity of 10 LPM to 36 LPM. The Body of the pump is called a Crank Case, also called Oil Bath chamber. The yellow color portion of the pump is an assembly of three chambers Viz:

Suction chamber at the bottom, Valve chamber at the centre and delivery chamber at the top. Pressure vessel is provided to stabilise pressure/Flow of water . A By – Pass cum pressure regulating valve is also provided to regulate the pressure as well as to by pass the extra quantity of water. Pressure vessel and By – Pass valve are mounted on the above assembly side by side.

Boiler Feed Pump

Salient Features

• Body –Close Grain Cast Iron
• Impeller _ Bronze /S.S.
• Shaft – Stainless Steel
• Bearing – Ball Bearing at the driving or both the ends.
• Packing – Soft Graphite Packing.
• Shaft & Impeller – Only moving parts.
• Rotation-The shaft rotates clockwise seeing from driving end of the pump.
• Priming – Needs only at first stagge.
• Testing – Accuracy of + 10% Guarantee-One year against any Manufacturing defect.
• Specification IS-8472.
